Automotive Stainless Steel 6900 Bearing 6902 6903 6906 2RS Double Row Deep Groove Bearing

Name: Automotive Stainless Steel 6900 Bearing 6902 6903 6906 2RS Double Row Deep Groove Bearing
Brand: YGB,OEM,SKF,NTN
Price: 1 USD

Quality Automotive Stainless Steel 6900 Bearing 6902 6903 6906 2RS Double Row Deep Groove Bearing wholesale

Brand Name : YGB,OEM,SKF,NTN

Model Number : 6900,6902,6903,6906

Certification : ISO9001:2008

Place of Origin : Wuxi, China

MOQ : 1 pcs

Price : negotiation

Payment Terms : T/T , L/C

Supply Ability : 1,000,000pcs per month

Delivery Time : within 5- 15 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Application : Machinery Equipments

Material : stainless steel , Gcr15. carbon steel

Seal Type : ZZ, 2RS, Z, RS, RZ, 2RZ

Precision : P0, P6, P5, P4, P2

Virbration : V1, V2, V3

clearance : Co, C2, C3, C4

Contact Now

Automotive Stainless Steel 6900 Bearing 6902 6903 6906 2RS Double Row Deep Groove Bearing

Description

6900 6902 6903 6904 6906 Bearings, extra light bearings are normally used in applications where space limitations are a primary consideration and shaft sizes are relatively large. 6200 6300 Series Bearings mainly take radial load as well as moderate axial load. With less coefficient of friction, less vibration, and noise, less energy consumption, high limiting speed, large size range and variations of structure. Their straight forward basic design has many advantages:

1. Excellent for high speeds
2. High radial load capacity
3. Acceptable axial load capacity in both directions
4. Have low torque capacity at startup and running speeds
5. Can operate with low noise
6. Require little maintenance

Model	6906-2RS
Bearing material	GCr15/AISI52100/100Cr6
IDODW (mm)	30x49x9 mm
Seal type	double seals
Lead time	Stock or 15-30days
Weight(kg)	0.052
Limiting speed	19000 rpm
Clearance	C0,C2,C3,C4
Vibration Level	V1 V2 V3 V4
Precision Rating	P0,P6,P5,
MOQ	Negotiation
Port	Shanghai
Grease	Mobil polyrex EM,Kyodo Yushi SRL
Payment terms	T/T, L/C

Photo:

Automotive Stainless Steel 6900 Bearing 6902 6903 6906 2RS Double Row Deep Groove Bearing

Bearing No.	Boundary Dimensions				Basic Load Ratings		Weight
	Bore	Outer D	Width	Radius	Dynamic	Static	Kg
	d	D	B	r(min)	Dynamic	Static	Kg
6900	10	22	6	0.3	2080	850	0.0090
6901	12	24	6	0.3	2890	1460	0.0100
6902	15	28	7	0.3	4350	2260	0.0150
6903	17	30	7	0.3	4600	2550	0.0170
6904	20	37	9	0.3	6400	3700	0.0370
6905	25	42	9	0.3	7050	4550	0.0420
6906	30	47	9	0.3	7250	5000	0.0520
6907	35	55	10	0.6	8900	6600	0.0780
6908	40	62	12	0.6	13200	9800	0.1100
6909	45	68	12	0.6	13200	1000	0.1250
6910	50	72	12	0.6	13600	11000	0.1250

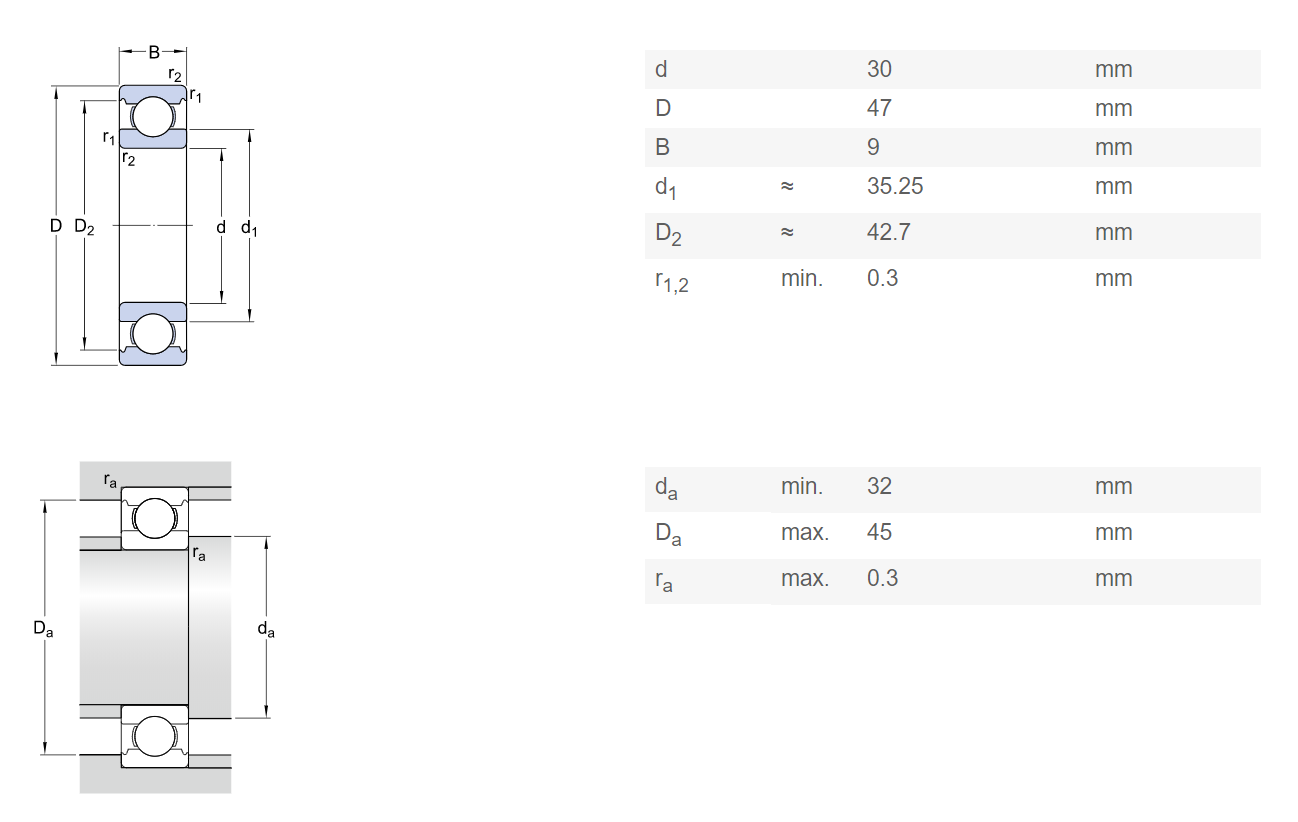

Drawing:
Automotive Stainless Steel 6900 Bearing 6902 6903 6906 2RS Double Row Deep Groove Bearing

Application

1. Automotive
2. Household appliances
3. Pump
3. Gearboxes
4. Electric motors and generators
5. Electric power tools
6. Heavy vehicles
7. Compressors
8. Office equipment

Product Tags:

deep groove roller bearing

6000 series bearings

Automotive Stainless Steel 6900 Bearing 6902 6903 6906 2RS Double Row Deep Groove Bearing Images
