22320 CA/C3W33 100 X 215 X 73 MM Self Aligning Bearing For Axle Of Railway Rolling Stock

Name: 22320 CAC3W33 100 X 215 X 73 MM Self Aligning Bearing For Axle Of Railway Rolling Stock
Brand: YGB,OEM,SKF,NTN
Price: 1 USD

Quality 22320 CA/C3W33 100 X 215 X 73 MM Self Aligning Bearing For Axle Of Railway Rolling Stock wholesale

Brand Name : YGB,OEM,SKF,NTN

Model Number : 22320 CA/C3W33

Certification : ISO9001:2008

Place of Origin : China

MOQ : negotiation

Price : negotiation

Payment Terms : T/T or LC

Supply Ability : 10,000pcs per month

Delivery Time : 5-10 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Model : 22320 CA/C3W33

Material : Chrome Steel

ID*OD*W : 100 X 215 X 73 MM

Precision rating : P0 P6 P5 P4 P2

Vibration : V,V1,V2,V3,V4

Sample : Available

Contact Now

Self Aligning Ball Bearing 22320 CA/C3W33 100 X 215 X 73 MM For Axle Of Railway Rolling Stock

Specification

Model	22320 CA/C3W33
Bearing material	GCr15/AISI52100/100Cr6
IDODW (mm)	100 X 215 X 73 MM
Seal type	double shields
Lead time	Stock or 15-30days
Weight(kg)	13.5Kgs
Basic dynamic load ratings/C	847kN
Basic static load ratings/C0	950kN
Limiting speed	3000 r/min
Clearance	C2,C0,C3,C4,C5
Vibration Level	V1, V2, V3, V4
Precision Rating	P0,P6,P5,
MOQ	No MOQ
Port	Shanghai
Grease	Mobil polyrex EM,Kyodo Yushi SRL
Payment terms	T/T, L/C

Photo:
22320 CA/C3W33 100 X 215 X 73 MM Self Aligning Bearing For Axle Of Railway Rolling Stock

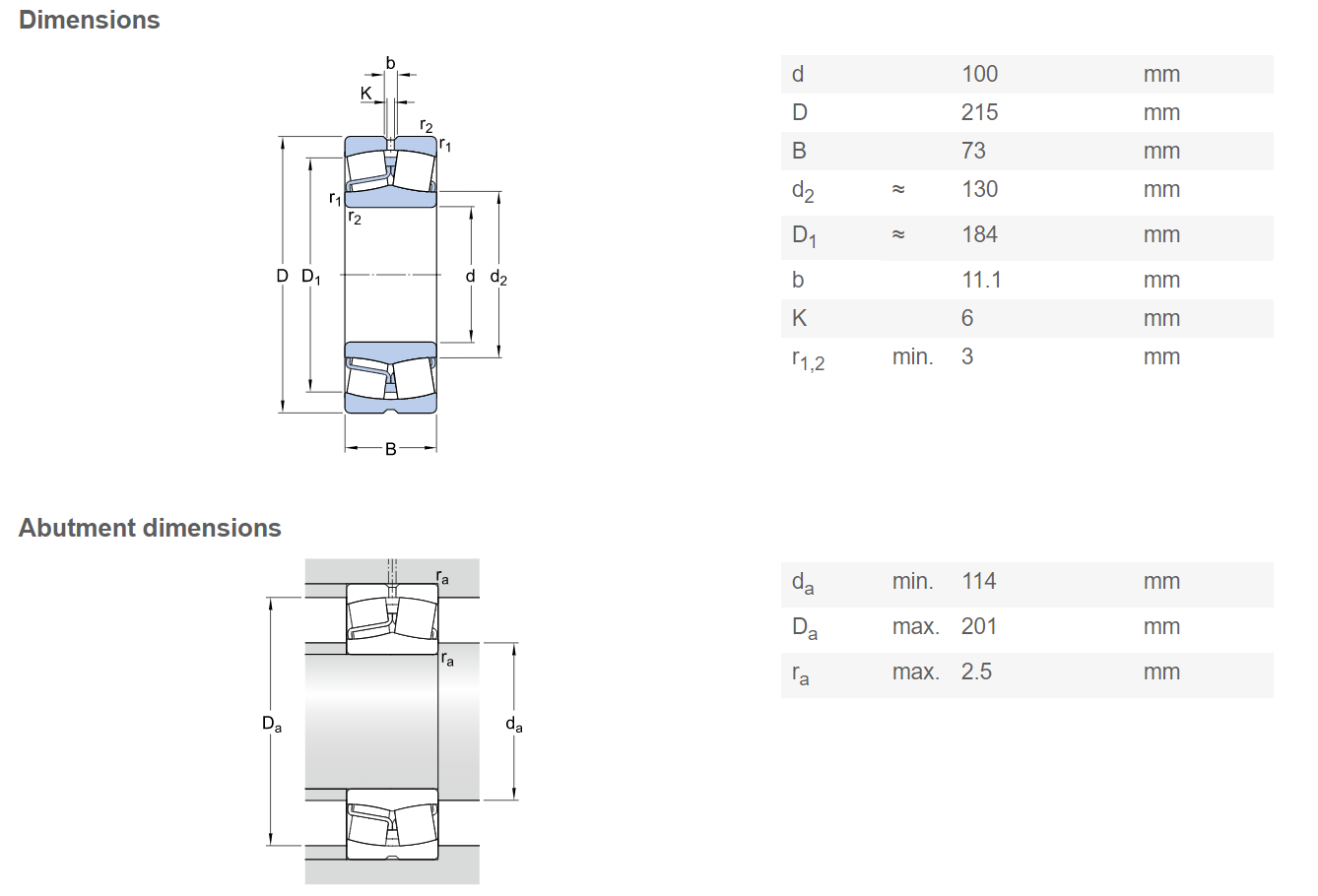

Drawing:

Product features:
Mainly bear radial load, but can bear less axial load. The axial displacement of the shaft (housing) is limited within the clearance limit, with automatic centering performance, allowing normal operation under the condition of relatively small inclination of the inner and outer parts, suitable for supporting parts whose holes cannot strictly guarantee the coaxial.

Structure form:
The aligning ball bearing with dust cover and the sealing ring has been filled with an appropriate amount of grease during assembly. It should not be heated or cleaned before installation, and it should not be lubricated during use. It is suitable for operating temperatures between -30 ℃ and + 120 ℃. Main applications: suitable for precision instrument, low noise motor, automobile, motorcycle, and general machinery
