Printing Machinery Inch Ball Bearing Double Shields Long Working Life

Product Categories
YGB Bearing Co.,Ltd
Contact Now

Printing Machinery Inch Ball Bearing Double Shields Long Working Life

  • 1
  • 2

Brand Name : YGB,OEM,SKF,NTN

Model Number : 1628 - ZZ

Certification : ISO9001:2008

Place of Origin : China

MOQ : negotiation

Price : negotiation

Supply Ability : 10,000pcs per month

Delivery Time : 5-10 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Payment Terms : T/T or LC

Model : 1628 - ZZ

Size : 15.875 x 41.275 x 12.7 mm

Material : Gcr15

Packing : 10pcs in a plastic keg + carton or individual box + carton

Grease : Mobil polyrex EM,Kyodo Yushi SRL

Seal type : open,double seals,double shields

Contact Now

Inch ball bearing 1628 - ZZ bearing used for printing machinery long working life

Description :

Model 1628 - ZZ
Bearing material GCr15/AISI52100/100Cr6
ID*OD*W (mm) 15.875 x 41.275 x 12.7 mm
Seal type open,double seals,double shields
Lead time Stock or 15-30days
Limiting speed 14000 r/min
Clearance C2,C0,C3,C4,C5
Vibration Level V1,V2,V3,V4
Precision Rating P0,P6,P5,
MOQ No MOQ
Port Shanghai
Grease Mobil polyrex EM,Kyodo Yushi SRL
Payment terms T/T, L/C


Other Models:

Bearing Number Bore Outer Diameter Width Radius Basic Load Ratings(kN) Ball
d D B r Dynamic Static Complement
mm inch mm inch mm inch mm inch C C0 No. Size(mm)
1601 4.763 17.463 6.350 0.3 .012 1.511 0.724 6 3.969
.1875 .6875 0.25
1602 6.350 17.463 6.35 0.3 .012 1.511 0.724 9 2.831
.2500 .6875 0.25
1603 7.938 22.225 7.144 .2812 0.3 .012 2.547 1.342 7 3.969
.3125 .8750
1604 9.525 22.225 7.144 .2812 0.3 .012 2.547 1.342 7 3.969
.3750 .8750
1605 7.938 23.019 7.938 0.3 .012 2.547 1.342 7 3.969
.3125 .9062 0.3125
1606 9.525 23.019 7.938 .3125 0.3 .012 2.547 1.342 7 3.969
.3750 .9062
1607 11.113 23.019 7.938 .3125 0.3 .012 3.556 1.938 7 3.969
.4375 .9062
1614 9.525 28.575 9.525 .3750 0.3 .012 3.921 2.245 8 4.763
.3750 1.1250
1615 11.113 28.575 9.525 .3750 0.3 .012 3.921 2.245 8 4.763
.4375 1.1250
1616 12.7 28.575 9.525 .3750 0.3 .012 3.921 2.245 8 4.763
.5000 1.1250
1620 11.113 34.925 11.113 0.6 .024 5.881 3.471 10 4.763

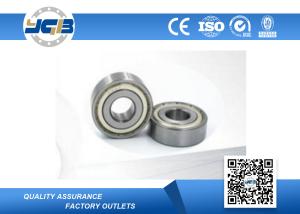

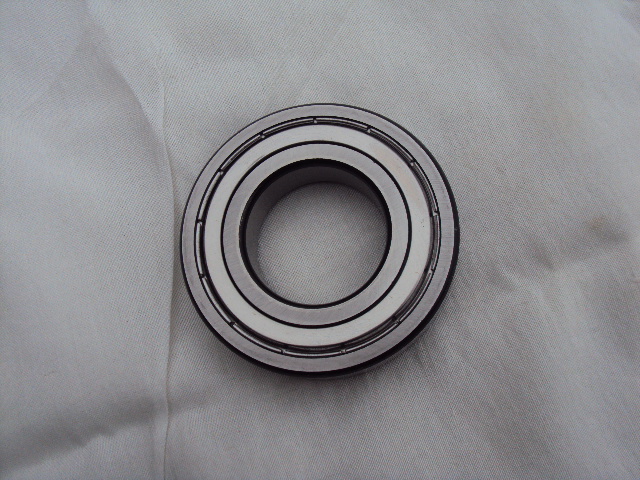

Photo:
Printing Machinery Inch Ball Bearing Double Shields Long Working Life

Drawing:
Printing Machinery Inch Ball Bearing Double Shields Long Working Life

Related Products:

Deep groove ball bearings
Cylindrical roller bearings
Needle roller bearings
Thrust ball bearings
Thrust roller bearings
Spherical roller bearings
Angular contact ball bearings


Payment
1: T/T: 30% as deposit and 70% balance after getting a copy of B/L.
2: L/C (cannot for branded bearings.)
3: Discuss together between buyer and supplier.
Why Us :
We are an industrial and trading company. We have our own brand: YGB. If you are interested in our product, I can take you to visit our factory.
Our factory has advanced testing equipment before every product leave the factory, we will be testing. We can send samples to you, you can test the quality, and if you accept the sample quality,we can promise: the follow-up orders’ quality will be the same as samples.
About ordinary standard type of bearing, We have rich inventory, not have MOQ, if you need a product is Non-standard size, need to customize, we will according to the product size to determine the MOQ.
Our company can accept OEM, you can send samples to me, we can manufacture products the same as the sample. Meanwhile, we also can accept some well-known brands of OEM.


Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
